Back Part 1 – Installing Haxe + Heaps 6 | ♥ 10

For this guide, I will presume that all Haxe related files will be installed in the c:\HaxeToolkit\ directory. Make sure to update the paths if you install your files somewhere else!

Haxe

Installing

Haxe is a cool programming language that can compile to multiple platforms. It’s free and open-source.

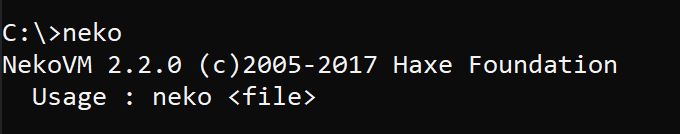

Install it (including Neko) to a folder like: c:\HaxeToolkit

Important: for the next sections of this tutorial, I’ll assume Haxe is installed in this HaxeToolkit folder.

After the setup, you should have the compiler and all the standard libraries in: c:\HaxeToolkit\haxe.

Does it work?

  • Open a command line,
  • Type haxe, you should see something like that:

If you get a “file not found” error:

  1. reboot,
  2. check again,
  3. if it still doesn’t work, re-install.

Hashlink

Installing

Hashlink (HL) is Haxe virtual machine. We use it to build cross-platform titles.

Install it to the Haxe toolkit folder: c:\HaxeToolkit\hl

Important: you must add all the Hashlink (hl.exe) folder to your PATH environment variable (how?).

Does it work?

From a command line, type hl:

If it doesn’t work:

  1. reboot,
  2. check again,
  3. if you get an error, type where hl,
  4. if you get an unknown command error, check your PATH environment variable.

Installing Heaps

HeapsIO is a free open-source 2D/3D engine used in large game projects, like Dead Cells, Northgard or Evoland 2.

The engine is actually a library of Haxe (ie. an Haxelib) which can be installed easily using the bundled haxelib.exe tool.

From a command line, run the following command:

haxelib git heaps https://github.com/deepnight/heaps.git

Important notes:

  1. we won’t use the default haxelib install heaps command here, because the GIT version is much more up-to-date than the haxelib repo (don’t ask me why)
  2. we also don’t use the official Heaps latest GIT because it’s often unstable. My version is the same as the official, but a few commits late, where it should be stable.

Installing other important Haxe libs

From a command line, for DirectX support in HashLink:

haxelib install hldx

For OpenGL/SDL support in HashLink:

haxelib install hlsdl

You can check the installed libs by typing:

haxelib list

Working with VSCode (recommended)

VScode is a nice IDE that features full Haxe integration if you install the dedicated extension. Out of the box, you’ll get code completion, easier project setup, debugging & much more.

Please note that you can do that from the extension panel. See below:

Use the built-in extension browser to get latest Haxe Extension Pack

Making a game

Now everything is ready, we can take care of the most interesting part: making an actual game using my GameBase.
